IR Remote Control System 2011 - Professional
IR Office2011-Professional
After
downloading open the Examples directory, and
inside the document to produce a good remote
control
[Overview]
After
a year of hard development, "Infrared Remote
Control System 2011 - Professional Edition"
finally in the June 11, 2010 World Cup, the
occasion of the official release, this is a
full-featured infrared remote management
tools, marks our that are in turn a major
step forward towards the platform of the
strategic level, also enriched the we Yuan
You, "Analysis of infrared remote control
coding instrument" function, in Yuanyou
product Shoujia unchanged, so that genuine
users received Guangda more tangible
benefits, the value of the extension
product.
The
system's goal is the same as Microsoft's
Office uniform infrared remote management
standard industry documentation, only the
standard uniform can help the development of
the industry.
Set
the remote control design, code analysis,
code management, testing platforms, matching
tools in one for R & D, production test,
matching all aspects of marketing.
The
new design concept, the core ideology is a
remote document-centric, all modules are
serving remote documentation, and specially
designed remote control document format
standard, each one a separate document, the
remote control is very convenient for the
document in all aspects of circulation, as
long as the double-click the file to open a
remote document, just as open as simple as
editing a document EXCEL. We
will put more power in the future continue
to research and development to keep ahead of
this system, leading the industry.
Contrast,
other similar products on the market, they
have adopted, without exception, database
management, research and development with
database, while reducing the difficulty, but
it also brings a lot of defects, the
complexity of the database, relevance,
currency inconvenience, flexibility is not
enough circulation when the remote control
data database cumbersome import and export
of non-regular users can control, and the
database is difficult to convey some of the
features, only in a database and turn,
perform simple query. Therefore,
this system completely abandoned database
system, design of the new De document
format, so we have more of 灵活 degrees can be
achieved in the more powerful of the
function.
Through
this system can be easily set up remote
control device interface, and manage remote
coding system itself has integrated a lot of
design material, and can do a very detailed
set to achieve the required results in the
future we will do more the material element,
the system easier to use.
Each
module of this system is not an isolated
existence, but organically linked, they
coordinated implementation of the module
correlation jump.

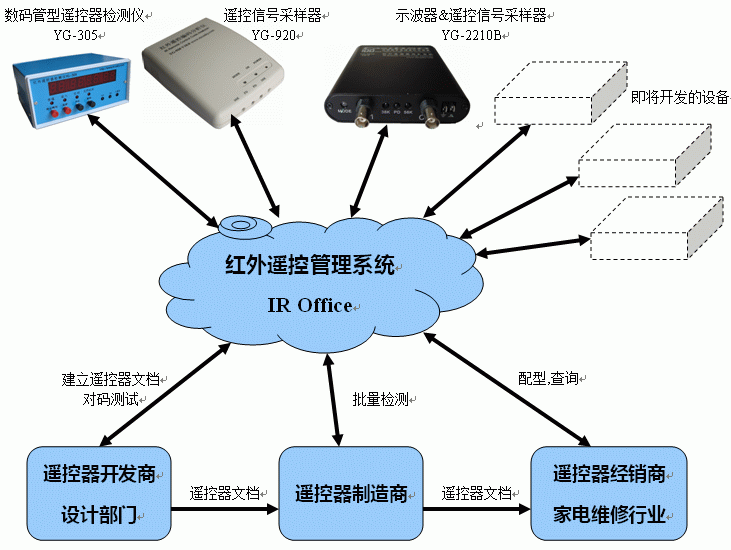

[Application Diagram]

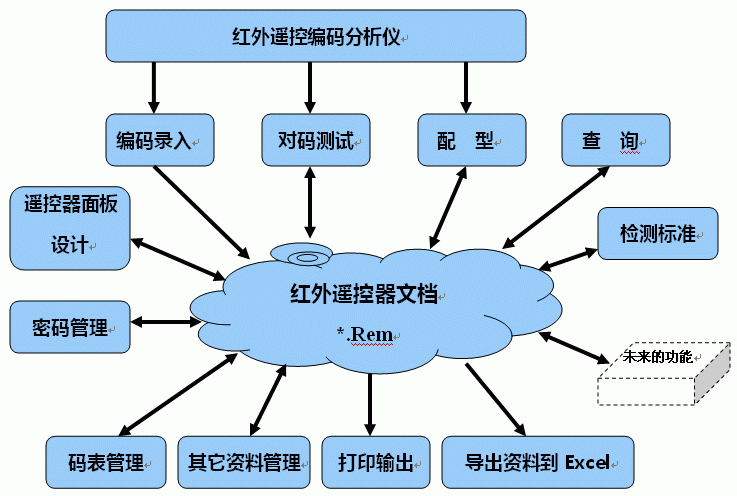

[Functional Diagram]

[For the object]
A,
design of remote control company: remote
control chip developer, remote control
program developers, testers
1, developers can use this system to
establish remote control documentation,
including remote control panel, and can
input code table, testing standards,
accessories, and distributed to various
departments.
2, the development is completed,
testers can get a new prototype
developed in this system, save the
document with the code do the test.
B, remote control manufacturer:
quality inspection department,
production department
1, remote control, manufacturers can
program the remote control company to
obtain the appropriate documentation,
you can also establish their own remote
control documents for the company's
management.
2, the system can be used for remote
control of volume production testing,
can detect the key short-circuit, open
circuit, error codes, error caused by
crystal quality.
3, can be produced by a prototype
remote control document, submitted to
the program design, product design
applications.
4, the document can also be remote
clients to demonstrate the company's
downstream products.
C, remote dealers, appliance repair
industry
1, remote control dealers from
different suppliers access to relevant
documentation for the remote control,
remote control can also be set up on its
own remote control documents.
2, when a remote user to buy, the
dealer can be tools of the system of
matching documents from the existing
remote control to select the matching
remote control, matching method can
query the remote control model, electric
models, manual input encoded data query,
through prototype button sampler data
collected to achieve a progressive
query. After
the success of matching can further
check the remote picture, than coding,
if not in stock can also be recorded in
accordance with the document information
on purchasing products supplier.
[Features]
Support
the company'sYG-2210B
V3.0, V8.0 YG-920, YG-920 V6.0,YG-305,
YG-303, YG-302, YG-301, YG-201 remote
control signal sampler.
The
system can be designed through the
remote control panel, including the
shell, screen printing, buttons, and can
use images as a shell, button, logo,
etc., can be very realistic effects, and
can be interactive.
Well-designed
remote control document format, full
consideration of the forward backward
compatibility.
Single-function,
multi-function remote control code
management.
Support
data printing, exporting to other
document formats such as EXCEL.
Remote
control interface, zoom.
Can
record format name, customer code, key
code, all code, waveform, carrier
frequency, duty cycle, yards long.
You
can specify key data to view
permissions, to achieve a security
function.
Can
be designed to enrich the button shape
and pattern, rotation angle, you can use
custom images to achieve special
effects.
Support
for non-code key.
Document
rights management, you can set the
password to open, edit, password, some
view the password.
Support
notebook, Attachment Manager, a remote
control document can also add an
attachment, such as schematics, manuals
and so on.
Built-in"remote
control code analyzer. "
Built-in
remote control typing tool.
Statistics
and analysis of coding data.
Data
query tool.
Support
for Win98 - Windows7 32-bit, 64-bit
operating system
Currently
only supports Simplified Chinese
language, but the built-in "remote
control code analyzer," Support for
Simplified and Traditional Chinese and
English.
[Renderings]

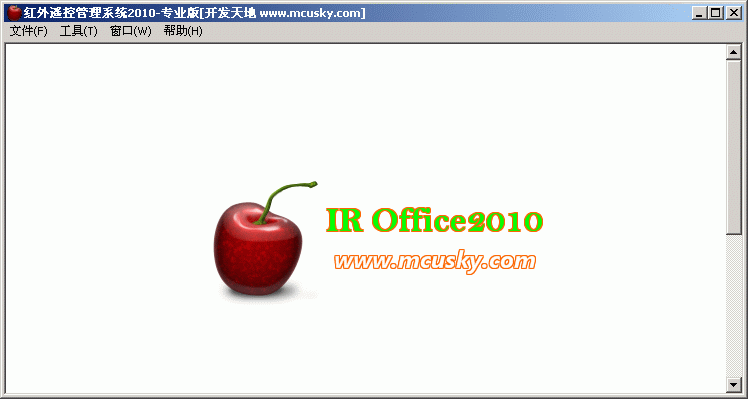

1, the main interface

2, built-in infrared remote control code
analyzer, waveform display supports more
channels, arbitrary zoom window
3, remote control, the main interface design
4, touse
the picture, rotate button, screen printing of
edge processing, display key code or customer
code, the code testing process
5, you can specify some keys confidential, need
to enter a password before they can view.
6, matching remote control interface
7, the query interface

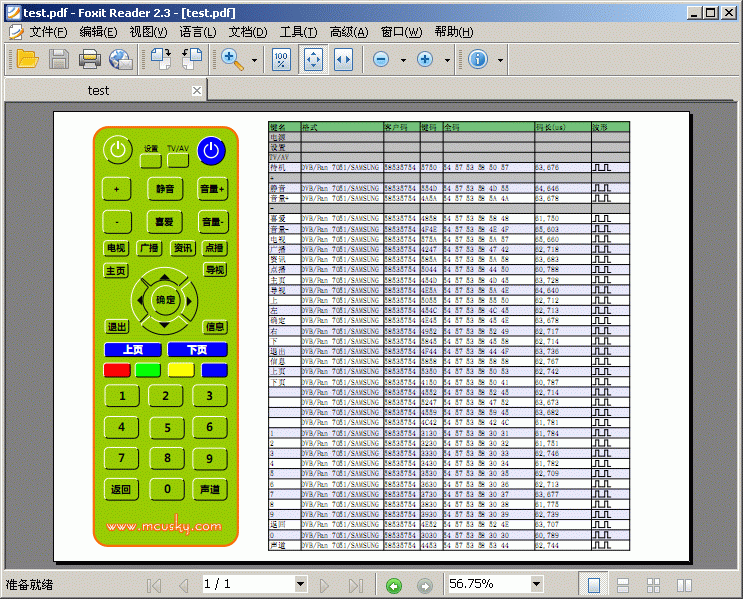

8, print output results

[General format validation results]
SAA3010P: 11 0 00000 010001 1 [00 11]
SAA3010 RC-5: 11 0 00000 100100 [00 24]
SINGH2150 (Gemini-C17): 1FFFD 1 4A01
Gemini-C10 (31.36K): 1111111111 1
100010000 [3FF 1 011]
PILOT370 (30K): 1111111 1 100010 [7F 1
11]
Gemini-C6 (31.36K): 1 101011 [1 35]
ASTRO (56KHz): 00110100 00100000 0000011
[34 20 03]
M9148: 110 110 1000 10 [3 3 11]
TW6KEY: 00010101 [15]
TC9012: 0A 0A 11 EE
N3201: 00 2B D7 28
LBNSAMSUNG: 0A A 11
REMOCON: 0A 0A 11 EE
REMOCON1: 0A 0A 11
uPD6121G: 00 FF 11 EE
uPD6121G2: 00 FF 11 EE 00 FF
uPD6121G-001: 20 30 40 11
XHY3305: 00 FF 5 11 EE
czdvd: 1C 61 DC 53 AC 1
XY2106: 00 01 FE
MOTOROLA: 20 30 40
with-ehome: 0000010 0000110000 [20 030]
MR-2402A-04A: 00 FF 11 EE
Victor-C8D8: 11100010 01000000 [47 02]
XY_JAECS: 11100010 01000000 [47 02]
M50560: 11100010 01000000 [47 02]
M50560: 11100010 01000000 [47 02]
T36: 01001000 00101100 0000 10001000
01110111 [12 34 0 11 EE]
2185: 10100 01100 01011 10011 [05 06 1A
19]
PPM4-64BIT: 82 10 33 44 82 10 33 44
PPM4-32BIT: 82 10 33 44
PPM4-28BIT: 82 10 33 4
KONKA KK-Y261: 00000010 00010000 [02 10]
6 keys: 101000 [05]
THOMSON RCT311: 0001 1 0001001 [1 09]
THOMSON RCT311: 0000 0 0100010 [0 22]
Sharp (IX0773CE): 10000 01000000 10
10000 10111111 01 [01 02 1 01 FD 2]
Sharp (LX0773): 10000 01000000 10 10000
10111111 01 [01 02 1 01 FD 2]
Sharp: 10000 01000000 1 10000 10111111 0
[01 02 1 01 FD 0]
LC7464M Panasonic: 02 20 80 00 05 85
PANPROJECTOR: 02 20 80 00 00 05 85
SAMSUNG AH59-00134K: 43 53 01 04 05 00
SAMSUNG X15/B26: 43 53 01 04 05 00
DVB / Pan 7051/SAMSUNG: 54 57 53 58 52
49
TOPWAY-HDDVB: 53 5A 30 54 CF
LC7461M-C13: 011F 1EE0 11 EE
LC7461M-C26D16: 011F 011F 11 EE
MN6014A/W-C6D6: 100001 111000 011110
000111 [21 07 1E 38]
MN6014W-C5D6: 10000 111000 01111 000111
[01 07 1E 38]
Goodmans: 10101000 [15]
MiniDV: 10000100 [21]
uPD6124: 0000100 10000 [10 01]
uPD6124-D7C8: 0000100 10000000 [10 01]
uPD6124-D7C13: 0000100 1000000000000 [10
0001]
HT12A: 00001000 1000 [10 1]
U19-AUX: 10001000 00000000 [11 00]
M451: 00010100 0111 [28 E]
PHILIPS RC-MM (24 bits): 00320000 0330
[0E00 3C]
PHILIPS RC-MM (32 bits): 000000320000
0330 [000E00 3C]
PHILIPS: 1 000 1 00000100 00100000 [1 0
1 04 20]
PHILIPS RC-6: 1 6 0 80 21 04 1C
PHILIPS RC-6 (2): 1 6 0 80 21 04 1C
PHILIPS RC-6 (3): 1 6 0 0 00 00
RE39B (56K): 11111000 11111110 00000000
01011001 [F8 FE 00 59]
T0740 (56K): 11111000 11111110 00000000
01011001 [F8 FE 00 59]
PT2268: 00110011 01100010 01100010 [CC
46 46]
ST M708LB1: 10000 011100 0 [01 0E 0]
LIUZL: 10100 [05]
THOMSON: 10101000 00001000 01011000
11111000 [15 10 1A 1F]
DVB-40BIT: 48 4E 43 30 32
MN6027B-D5: 10100 01011 [05 1A]
ECHOSTAR-D5C5 (56KHz): 00101 00000 [05
00]
ElanHomeV2.0 (40KHz): 00 FF 11 EE
Norcent: 01100110 [66]
FB739A: 10001001 00010 [91 08]
Dusun001: 0 1 000000 00000000 [0 1 00
00]
Dusun002: 1 01011100 00000011 01011110
[1 5C 03 5E]
Dusun003: 02 03 55 AA
TCL-DVB: 11 0 00000 100100 [00 24]
with-ehome: 0010011 0010110011 [64 334]
with-ehome: 0000100 0000000001 [10 200]
Vivanco DVB: 11000000 10100000 0010 [03
05 4]
GD-2000: 01000000 0000 0111 [02 0 E]
HuiZhou: 11000000 1000 [03 1]
BW7070: 11100010 010000 0 [47 02 0]
Unknown-D7: 101101 101101 [2D 2D]
Unknown-D7-01 (28K): 101101 101101 [2D
2D]
Unknown-D6C10 (56K): 000010 0000000000
[02 000]
Unknown-D8-01 (28K): 10110101 10110101
[AD AD]
Unknown-D5 (36K): 11011 [1B]
Unknown-40BIT: 00 FF 11 EE 00
Unknown-12BIT: 01 4
Unknown-32BIT (45K): 01 04 05 06
Unknown-40BIT-01: 00 FF 11 EE 00
Unknown-50BIT: 00 01 02 03 04 02 0
M3004/6C LAB1: 1 0 111 011010 [7 1A]
M3004 (2): 1 0 111 011010 [7 1A]
LG3004/6C (33K): 1 0 111 011010 [7 1A]
M3004-C3D8: 111 00011010 [7 1A]
CUSTOM-6BIT: 100010 [11]
MN6125L: 10001 10001 [11 11]
uPD1986C: 01101 [16]
LIKE1986 (27K): 01101 [16]
Unknown-NRZ-32BIT (40K): FF 88 BD 1D
M50462: 11100010 01000000 [47 02]
uPD6121G: 0A 0A 11 EE
M50119P: 101 0100000 [5 02]
M50119P-01: 101 0100000 [5 02]
M50119L: 101 0100000 [5 02]
M50119L-01 (21K): 101 0100000 [5 02]
CUSTOM-C1D6: 1 100010 [1 11]
MIT-C8D8: 11100010 01000000 [47 02]
Zenith S7: 0010001 [11]
Zenith D5: 10001 [11]
SAF1039: 10100 [05]
GRUNDIG-DVD: [1 0A 13]
PACE: 0101 010001 [5 11]
DSTV: 1000100 [11]
Zenith S10: 00101011 01 [2B 1]
RCA (56K): 0101 00010001 1010 11101110
[5 11 A EE]
RCA-01 (56K): 0101 00010001 1010
11101110 [5 11 A EE]
RCA-02 (56K): 0101 00010001 1010
11101110 [5 11 A EE]
Unknown-C4D8: 0101 00010001 1010
11101110 [5 11 A EE]
Unknown-C8D5: 1 00010001 10011 00010001
10011 [1 11 13 11 13]
Unknown-C3D6 (40K): 101 010001 0 101
010001 0 [5 11 0 5 11 0]
MDI1: 01101100 01101110 10000010
00000000 [36 76 41 00]
Dream-DVB: 2B1F441A 28010500
TRC-1: EF F0 40 40
IRT1250C5D6 (0Hz): 01100 000010 [06 10]
IRT1250C5D6-01 (0Hz): 01100 000010 [06
10]
IRT1250C5D6-02 (0Hz): 01100 000010 [06
10]
IRT1250C5D7 (M708 0Hz): 00000 010000 0
[00 02 0]
M3004/6C LAB1: 0 1 100 000001 [4 01]
ZenithsimC2D8 (0Hz): 10 00010000 [2 10]
LG3004/6C (33K): 1 0 111 011010 [7 1A]
BIASAA: 10111 011010 [17 1A]
MV500-01 (0Hz): 01011 [0B]
MV500-02 (0Hz): 01011 [0B]
MV500-03 (0Hz): 01011 [0B]
MV500-04 (0Hz): 01011 [0B]
MV500-05 (0Hz): 01011 [0B]
SL490 (0Hz): 01011 [0B]
SL490-01 (0Hz): 01011 [0B]
SL490-NEW (0Hz): 1101 [B]
JVC-CABLE: 01011 [0B]
Unknown-C5D7 (0Hz): 1101010 00001
0010101 11110 [2B 10 54 0F]
Unknown-C5D7-01 (0Hz): 1101010 00001
0010101 11110 [2B 10 54 0F]
Unknown-C2D8 (0Hz): 10 00010001 [2 11]
Unknown-D5 (0Hz): 00010 [02]
Unknown-C5D5 (0Hz): 11011 00001 [1B 10]
Unknown-D5-01 (0Hz): 00010 [02]
uPD6121G: 00 FF 11 EE
Canon: 1
Pentax: 000001 [01]
[Air Conditioning format validation
results]
Mitsubishi Electric (388): 42 0A CD 59
EB 7D
Mitsubishi Heavy Industries (09NV): 42
0B F6 CE 91 4C 2D E0 11 54 34 36 E0 1A
Mitsubishi 1: C3 14 24 26 50 0B FF 11 52
9A 5D A8 98 9B CF E1 A3
Mitsubishi 2: 09 A5 B7 A9 2B 7C 5 - E0
10 12 9C 36 E1 4
Mitsubishi 3: 82 0B F7 A9 2B 7D
Mitsubishi 4: C2 0A CD 59 EB 7C 4 - 2F
53 E5 C6 5F 9B 5
Mitsubishi 5: 42 0B F6 CE 91 4 - 2D E0
11 54 34 6
Mitsubishi 6: C3 14 24 26 50 0B
Mitsubishi 7: 09 A5 B7 A9 2B 7C 2D E0
Mitsubishi 8: 82 0B F7 A9 2B 7D
Mitsubishi 9: C2 0A CD 59 EB 7C
Mitsubishi 10: 42 0B F6 CE 91 4C 2D E0
11 54
Mitsubishi 11: C3 14 24 26
Panasonic (973): 09 A5 B7 A9 - 2B 7C 2D
E0 - 10 12 9C 36 - E1 9C 3D 31
Music 1: 82 0B F7 1 - 2B 7D 1E 2 - D8 92
9C 2
Music 2 (normal): C2 0A CD 59 EB 7C 2C
2F - 53 E5 C6 5F 9B CD 6F 61 - A3 B5 17
49 CA F3 7E 37 - D3 05 66 7F 3B 6D 0F 00
41 - 44 64 66 90 4B 3E 56 19 34 - 74 77
FA A3 EF A0 60 63 F7
Daikin 1: 42 0B F6 CE 91 4C 2D - E0 11
54 34 36 E0 1A 64 3E 28 A2 2D F9
Daikin 2: C3 14 24 26 50 0B FF
Daikin 3: 09 A5 B7 A9 2B 7C 2D E0 - 10
12 9C 36 E1 9C 3D 31 E2 2B 96 EE B1 EC
4D 80 31 F4 55
Daikin 4: 82 0B F7 A9 2B 7D 1E 16 D8 92
9C 36 E0 1A 65 D0 20 22 2C 46 71 EC 4D
81 33 85 67 19 1A 83 4F 00
Toshiba 1: C2 0A CD 59 EB 7C - 2C 2F 53
E5 C6 5F
Toshiba 2: 42 0B F6 CE 91 4C - 2D E0 11
54 34 36 - E0 1A 64 3E 28 A2 - 2D F9 8A
F2 B5 21
Toshiba 3 (normal): C3 14 24 26 50 0B FF
11 52 - 9A 5D A8 98 9B CF E1 A3 B4
Toshiba 4: 09 A5 B7 A9 2B 7C
Fujitsu 1 (Power): 82 0B F7 A9 2B 7D 1E
16
Fujitsu 2 (boot): C2 0A CD 59 EB 7C 2C
2F 53 E5 C6 5F 9B CD 6F
Fujitsu 3 (start): 42 0B F6 CE 91 4C 2D
E0
Fujitsu 4: C3 14 24 26 50 0B FF 11 52 9A
5D A8 98 9B CF E1 A3 B4 45 59 0A F3 7E
37 D3 05 67 19 1A 82 44 5E 49
Fujitsu 5 (boot): 09 A5 B7 A9 2B 7C 2D
E0 10 12 9C 36 E1 9C 3D 31
Carrier 1: 82 0B F7 A9 - 2B 7D 1E 16 -
D8 92 9C 36
Carrier 2: C2 0A CD 59 EB C
Carrier 3: 42 0B F6 CE 91 4C 2D E0 11
McQuay: C3 14 24 26 50 0B FF 11 52 9A 5D
A8 98 9B CF E1 A3 4
Hitachi 1: 09 A5 B7 A9 2B 7C 2D E0 10 12
9C 36 E1
Hitachi 2: 82 0B F7 A9 2B 7D 1E 16 D8 92
9C 36 E0
Fujitsu 4: C2 0A CD 59 EB 7C 2C 2F 53 E5
C6 5F 9B CD 6F 61 A3 B5 17 49 CA F3 7E
37 D3 05 66 7F 3B 6D 0F 00 41
Hitachi 4: 42 0B F6 CE - 91 4C 2D E0 -
11 54 34 36 - E0 1A 64 3E
Hitachi 5 (power): C3 14 24 26 50 0B FF
11 52 9A
Sharp Sharp 1: 09 A5 7 - A9 2B C - 2D E0
0
Sharp Sharp 2: 82 0B F7 A9 - 2B 7D 1E 16
- D8 92 9C 36
Sharp Sharp 3: C2 0A CD 59 - EB 7C 2C 2F
- 53 E5 C6 5F
Sharp Sharp 4: 42 0B F6 CE 91 4C 2D E0
11 54 34 36 E0
LG1: C3 14 24 26 50 0B FF 11 52 9A 5D A8
98 9B CF E1 A3 B4 45 59 0A F3 7E 37 D3
05 67 19 1A 82 44 5E 49 E5 F6 0F 0A 13
1F D1 93 25 06 9F DB 0C 7C 7E 68 E3 F7
08 E9 8D
LG2: 09 A5 B7 9
Treasure 1: 82 0B F7 A9 2B 7D 1E 16 D8 -
92 9C 36 E0 1A 65 D0 20 22
Treasure 2: C2 0A CD 59 EB 7C 2C
Treasure 3: 42 0B F6 CE 91 4C 2D E0 11
Treasure 4: C3 14 - 24 26 - 50 0B - FF
11
Compal 5: 09 A5 B7
Compal 6: 82 0B F7 A9 2B
Kelon 1: C2 0A CD 59 EB
Kelon 2: 42 0B F6 CE 91 4C
Kelon 3: C3 14 24 26 50 0B FF - 11 52 9A
5D A8 98 9B
Kelon 4: 09 A5 B7 A9 2B 7C
Kelon 5: 82 0B F7 A9 2B 7D 1E
Kelon 6: C2 0A CD 59 B
Haier 1: 42 0B F6 CE 91 4C 2D E0 11 - 54
34 36 E0 1A 64 3E 28 A2
Haier 2, AR-201, AR-611, AR-501: C3 14
24 26 50 0B F
Mitsubishi 7: 09 A5 B7 A9 2B 7C 2D E0
Haier 4: 82 0B 7 - A9 2B D - 1E 16 8
Haier 5: C2 0A CD 59 EB 7C 2C - 2F 53 E5
C6 5F 9B CD
Haier 6: 42 0B F6 CE 91 4C 2D E0 11
Haier 7: C3 14 24 26 50 0B FF 11 52 9A
5D A8 98 9B
Haier 8: 09 A5 B7 A9 2B 7C D
Haier 9: 82 0B F7 A9 2B 7D 1E 16 D8 92
9C
Haier 10: C2 0A CD 59 EB
Haier 11: 42 0B F6 CE 91 4C 2D - E0 11
54 34 36 E0 1A
America's 1: C3 14 24 26 50 0B FF 11 52
9A 5D
America's 2: 09 A5 B7 29 - 2B 7C 2D 60
America's 3: 82 0B F7 A9 2B 7D 1E 16 D8
92 9C
United States 4 (power): C2 0A CD 59 EB
- 7C 2C 2F 53 E5 - C6 5F 9B CD 6F
Gree 1: 42 0B F6 CE 1
Gree 2: C3 14 24 26 50 0B F
Fujitsu 3 (off): 09 A5 B7 A9
Gree 4: 82 0B F7 A9 - 2B 7D 1E 16
Gree 5: C2 0A CD 59 EB 7C C
Gree 6: 42 0B F6 CE 1
Gree 7: C3 14 24 26 50 0B F
Gree 8: 09 A5 B7 A9 2B 7C 2D E0 - 10 12
9C 36 E1 9C 3D 31 E2 2B 96 EE B1 EC 4D
80 31 F4 55
Gree 9: 82 0B F7 A9 3 - 7D 1E 16 D8
TCL1: C2 0A CD 59 EB 7C 2C 2F - 53 E5 C6
5F 9B CD 6F 61
TCL2: 42 0B F6 CE 1 - 4C 2D E0 11 0 - 34
36 E0 1A 0
TCL3: C3 14 24 26 50 - 0B FF 11 52 9A -
5D A8 98 9B CF
TCL4: 09 A5 B7 A9 2B 7C 2D E0 10 12 C
New Section 1: 82 0B F7 A9 2B
The new Section 2: C2 0A CD 59 EB
New Section 3: 42 0B F6 CE 91 4C 2D E0
11 54 34 36 - E0 1A 64 3E 28 A2 2D F9 8A
F2 B5 21
New Section 4: C3 14 24
Changhong 1: 09 A5 B7 A9 2B 7C 2D E0 10
Changhong 2: 82 0B F7 A9 2B 7D 1E 16 D8
92 C
Changhong 3: C2 0A CD 59 EB 7C 2C 2F 53
E5 C6 5F
Changhong 4: 42 0B F6 CE 91 4C 2D E0 11
54 34 36 E0 1A 64
Changhong 5: C3 14 24 26 50 0B FF 11 52
9A 5D 8
Sok Hua 1: 09 A5 B7 A9 2B 7C 2D E0 10 -
12 9C 36 E1 9C 3D 31 E2 2B
Power of 1: 82 0B F7
Power of 2: C2 0A CD 59 EB 7C 2C 2F
Power 3: 42 0B F6 CE 91 4C 2D E0
Power 4: 43 14 24 26 50 0B FF 11
Toho 1: 09 A5 B7 A9 2B
Toho 2: 82 0B F7 A9 2B
TOHO 3: C2 0A CD 59 EB
Blue Wave 1: 42 0B F6 CE 91 - 4C 2D E0
11 54
Blue Wave 2: C3 14 24 26 50
Blue Wave 3: 09 A5 B7 A9 2B
Blue Wave 4: 82 0B F7 A9 2B
Blue Wave 5: C2 0A CD 59 EB - 7C 2C 2F
53 E5
Blue Wave 6: 42 0B F6 CE 91
Blue Wave 7: C3 14 24 26 50 - 0B FF 11
52 9A
Blue Wave 8: 09 A5 B7 A9 2B 7C 2D E0 -
10 12 9C 36 E1 9C 3D 31
Yasuharu, Changhong: 82 0B F7 A9 2B 7D
1E 16 D8 92 9C 36 E0 1A 65 D0
TECO 1: C2 0A CD 59 - EB 7C 2C 2F
Teco 2: 42 0B F6 2 11 - 4C 2D E0 1 14
TECO 1: C3 14 24 20 - 0B FF 11 34
Sanyo (RL-200, RL-200A): 09 A5 B7 A9 B
7C
Sanyo (RL-300, RL-500, RL-5S0): 82 0B F7
A9 2B D
Sanyo (600,800,900 Series): C2 0A CD 59
EB 7C
Sanyo 2: 42 0B 76 6 11 - 4C 2D 60 1 14
Sanyo 3: C3 14 24 26 50 0B
Sanyo, NEC 1: 09 A5 B7 A9 2B 7C 2D E0 10
12 9C 36
Sanyo, NEC 2: 82 0B F7 A9 2B 7D
Sanyo, NEC 3 (Power): C2 0A CD 59 EB C
Sanyo, NEC 4: 42 0B F6
Sanyo, NEC 5: C3 14 24 26 50 0B FF 11 52
9A 5D A8 98 9B
Samsung 1: 09 A5 B7 A9 2B 7C 2D E0 10 12
9C 36 E1 9C
Samsung 2 (start): 82 0B F7 A9 2B 7D 1E
- 16 D8 92 9C 36 E0 1A
Samsung 3 (boot): C2 0A CD 59 EB 7C 2C
Samsung 4: 42 0B 6 - CE 91 C
Aipu Burton 1: C3 14 4 - 26 50 0B FF 11
52 9A - 5D A8 8 - 9B CF E1 A3 B4 45 59
Aipu Dayton 2: 09 A5 7 - A9 2B 7C 2D E0
10 12
Aipu Dayton 3: 82 0B F7 A9 2B - 7D 1E 16
D8 92
Pescod 1: 2 0A D 59 EB 7C C - F 53 5 C6
5F 9B D
Pescod (ZH/JT-03): 42 0B F6 CE 91 4C 2D
E0 11 54 34 36
Hisense, Aucma, Yushchenko: C3 14 24 26
50 0B
Yushchenko 2: 09 05 7 A9
Aucma 1: 82 0B F7 A9 2B 7D 1E 16 D8 92
9C 36
Aucma 2: C2 0A CD 59 EB 7C 2C 2F 53 E5
Aucma 3: 42 0B F6 CE 91 4C 2D E0 11 54 4
Hisense 1: C3 14 24 26 50 0B F - 1
Aucma 2: 09 A5 B7 A9 2B 7C 2D E0 10 12
Hisense RCH-2609: 82 0B F7 A9 2B 7D - 1E
16 D8 92 9C 36 E0 1A - 65 D0 20 22 2C 46
71
The new format (ON): C2 0A CD 59 EB 7C
2C 2F 53 E5 C6 5F 9B CD 6F
Ge Lanshi 1: 42 0B F6 CE 91 4C 2D - E0
11 54 34 36 E0 1A - 64 3E 28 A2 2D F9 8A
Ge Lanshi 2: C3 14 24 26 50 0B
Haier 4: 90 A5 E - 95 D4 3 - B4 07 0
HKFUGAM01: 82 0B F7
Haier 2, AR-201, AR-611, AR-501: C2 0A
CD 59 EB 7C C
MasterCard benefits: 42 0B F6 CE - 91 4C
2D E0
Songer 1: C3 14 24 26
Songer 2: 09 A5 B7 A9 B
First China: 82 0B F7 A9 2B 7D 1E
Chaperau: C2 0A CD 59 EB
Trefoil 1: 2 0B 6 CE 91 4C D - 0 11 4 34
36 E0 A
Clover 2: C3 14 24 26 50 0B FF 11
Yaxing (normal): 09 A5 B7 - A9 2B 7C -
2D E0 10
Hong-Jun 1: 82 0B F7 A9 2B 7D 1E 16 D8
92 9C 36 E0 1A 65
Hong-Jun 2: C2 2 CD 59 - EB 0 2C 2F - 53
1 C6 5F - 9B 1 6F 61
New Snow: 42 0B F6 CE 91 4C 2D E0 11
Corona 1 (normal): C3 14 24 26 50 0B FF
- 11 52 9A 5D A8 98 9B
Corona 2: 09 A5 7 - A9 2B C - 2D E0 0
Whirlpool 1: 82 0B F7 A9 2B 7D 1E 16 D8
92 9C 36 E0 1A
Whirlpool 2: C2 0A CD 59 EB 7C 2C 2F 53
E5 C6 5F 9B CD 6F 61 A3 5
Ji Pusheng: 42 0B F6 CE 91 4C 2D E0 11
Wo Union: C3 14 24 26 50 0B F
Proton: 9 A5 B7 - A9 2B 7C 2D E0 10 12 -
C 36 E1 - 9C 3D 31 E2 2B 96 EE
Kolin: 2 0B F7 A9 2B 7D
Oaks 1: C2 0A CD 59 EB 7C 2C 2F 53 E5 C6
5F
Fujitsu 3 (off): 42 0B F6 CE
Oaks 3: C3 14 24 26 - 50 0B FF 11
Oaks 4: 09 A5 B7 A9 2B 7C 2D E0 10 12 9C
36 E1
Oaks 5: 82 0B F7 A9
Oaks 6: C2 0A CD 59 EB C
Oaks 7: 42 0B F6 CE 91 4C 2D E0 11 54 34
36 E0
Polka: C3 14 24 26 50
Chunlan 1: 09 A5 B7 A9 2B
Chunlan 2: 82 0B F7 A9 2B 7D 1E 16 D8
Tomii: C2 0A CD 59 EB 7C - 2C 2F 53 E5
C6 5F - 9B CD 6F 61 A3 B5
Hualing 1: 42 0B F6 CE 91 4C 2D E0 11 54
34 36 E0 1A
Hualing 2: C3 14 24 26 - 50 0B FF 11 -
52 9A 5D A8 - 98 9B CF E1 - A3 B4 45 59
- 0A F3 7E 37
Fei Lu 1: 09 A5 B7 A9 2B 7C
Flying Deer 2: 82 0B F7 A9 2B 7D 1E 16
D8
New Flight 1: C2 0A CD 59 EB 7C C
New Flight 2: 42 0B F6 CE 91 4C 2D E0
KTY002: C3 14 - 24 26 - 50 0B
Star, Boeing: 09 A5 B7 A9 2B - 7C 2D E0
10 12
Aite (normal): 82 0B F7 A9 B
Changling 1 (off): C2 0A
Changling 2: 42 0B F6 CE
Changling 3: C3 14 4 26
Changling 4: 09 A5 B7 A9 2B 3C
Changling 5: 82 0B F7 A9 2B 7D 1E 16
Changling 6: C2 0A CD 59 EB 7C
China and the United States: 42 0B F6 CE
91 4C 2D 0 - 11 54 34 36 E0 1A 64 E
Gold Beijing: C3 4 0 6 50 0B FF 11 52 1A
Leroy: 09 A5 B7 A9 2B
Meiling 1: 82 0B F7 A9 2B 7D 1E 16 D8 92
9C 36 E0 1A 65 D0
Songer 1: C2 0A CD 59
Japan Cable: 42 0B F6 CE 91 4C 2D
Shangling 1: C3 14 4 0
Shangling 2: 09 5 - 7 09 - 0B C
Shangling 3: 82 0B 7 1
Double Deer: C2 0A CD 59 EB 7C 2C 2F 53
E5 C6 5F 9B
Tianyuan: 42 0B F6 CE 91 4C 2D
With power 1 (normal): C3 14 24
With the power 2: 09 A5 B7 - 29 2B 7C
Panda: 82 0B F7 A9 2B 7D - 1E
Electrolux: C2 0A CD 59 EB 7C 2C 2F 53
E5 C6 5F
Ying Yan: 42 0B F6 CE 91 4C
York 1: C3 14 24 26 50 0B FF 11 52 9A 5D
A8 98 9B CF E1 A3 4
York 2: 09 A5 B7 A9 2B 7C 2D E0
Saijodenki: 82 0B F7 A9 - 2B 7D 1E 16
Long House: C2 0A CD 59 EB 7C 2C - 2F 53
E5 C6 5F 9B CD - 6F 61 A3 B5 17 49 CA
LOREN SEBO: 42 0B F6 CE 91 4C
LED light remote: C3 14 24 26 50 0B FF
11
|
|
|
